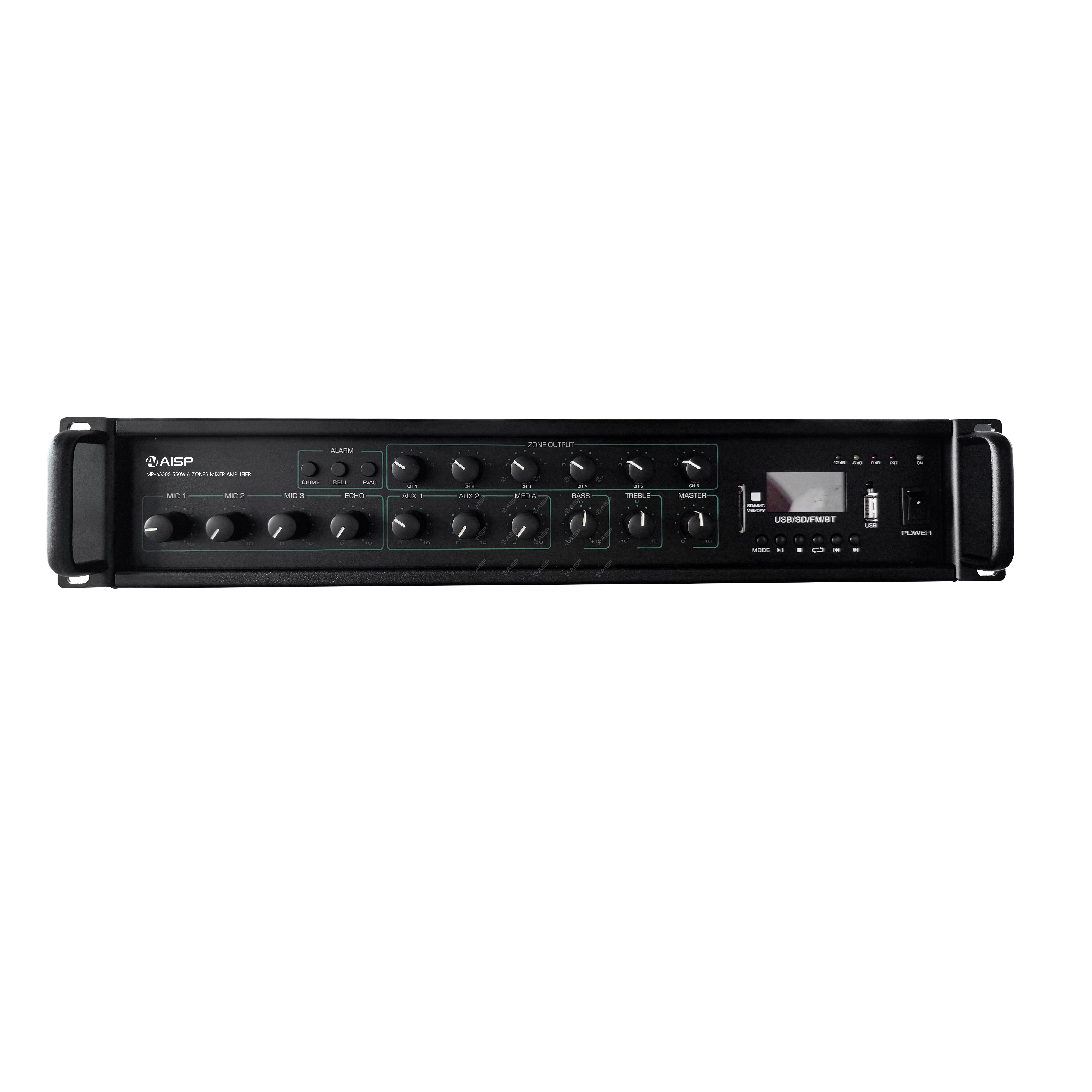

Multi Zone Amplifiers
Suitable for medium to large commercial and public spaces that require 6-zone independent volume control, such as schools, universities, auditoriums and lecture hallshospitals, clinics and waiting areas, restaurants, entertainment venues, conference rooms, multi-function halls and exhibition centers
● 6 zones speaker output,each zone with individual volume control
● 3MICinputs, Mic 1 with priority and echo function
● 2AUXline input & 1 AUX line output for power extension
● Each AUX&Mic input with individual volume control
● Bass & Treble tone control for better sound quality control
● 100V &4-16Ω optional speaker output for different uses
● Built with chime, emergency evacuation, alarm sound
● Support DC24V fire strong cut input to trigger alarm sound
● Support MP3/FM/SD/Bluetooth version 5.0(Distance 10m)
● Protection of overload, overheating, over-current, etc.,
| Model | MP-6120S | MP-6250S | MP-6350S | MP-6450S | MP-6550S | ||||
| Rated Power | 120W | 250W | 350W | 450W | 550W | ||||
| Speaker Output | 100V & 4-16 Ω | ||||||||
| Input A/C power | AC210-240V 50Hz | ||||||||
| A/C Fuse | 4A | 5A | 6.3A | 8A | 12A | ||||
| 70v Output | 33.5 Ω | 20 Ω | 14 Ω | 11 Ω | 8.5Ω | ||||
| 100v Output | 67Ω | 40Ω | 28.5Ω | 22Ω | 17Ω | ||||
| Frequency Response | 20KHz -60Hz <-1dB> | ||||||||
| THD | 100VOUT<-3dB> 0.5% | ||||||||
| AUX INPUT | 300mV | ||||||||
| MIC INPUT | 4mV | ||||||||
| S/N Ratio | >80dB | ||||||||
| PEC OUT | 650mV-750mV | ||||||||
| Dimension: | 483mmx88mmx320mm | ||||||||
| Weight: | 12KG | 13.5KG | 14.5KG | 17.5KG | 20.5KG | ||||
