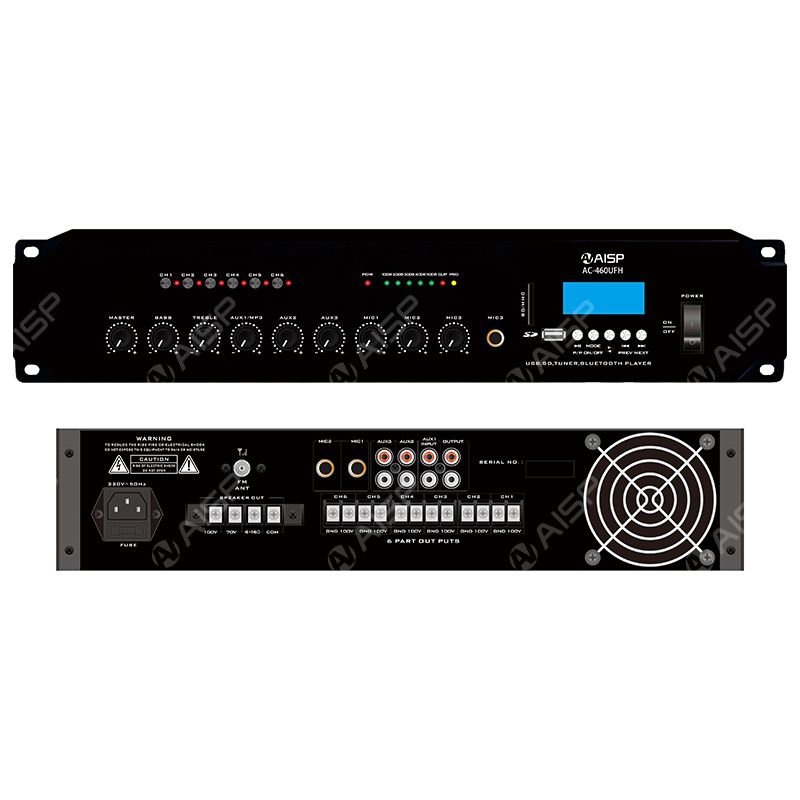

Zones Amplifier
6-zone multi-function mixer power amplifier, suitable for small and medium-sized indoor venues such as small and medium supermarkets, shopping malls, casual cafes and other small and medium-sized indoor venues for background music playback and small and medium-sized background music playback.
6 inputs, 3 AUX inputs and 3 mic input
Built with MP3/SD cards/ Bluetooth/FM/U disk
6 zones mixer amplifier, support 70v/100v, 4~16 Ω output
With master volume control and dependant signal adjustment for 6 zones
1 MIC with the highest priority, it will be mute automatically when signal input
| Product model | AC-460UFH | AC-560UFH | AC-660UFH | ||
| Rated Output | 460W | 560W | 660W | ||
| Output Voltage | 70V, 100V, 4-16Ω | ||||
| Input Sensitivity/Impedance | MIC1, 2, 3 : 5mV/600Ω, unbalanced TS terminal inputAUX1, 2, 3 : 350mV/10KΩ, unbalanced RCA terminal input | ||||
| Output Sensitivity/Impedance | 1000mV/470Ω, unbalanced TS terminal input | ||||
| Frequency | 50-16KHz(+1dB, -3dB) | ||||
| SNR | MIC1, 2, 3 : 66dB; AUX1, 2, 3 : 80dB | ||||
| Distortion | 1KHz 0.5%, 1/3 output power | ||||
| Protection | Overheat protection, overload protection&short circuit protection | ||||
| Dimensions | 484×88×360mm | ||||
| Weight | 16Kg | 17Kg | 18Kg | ||
