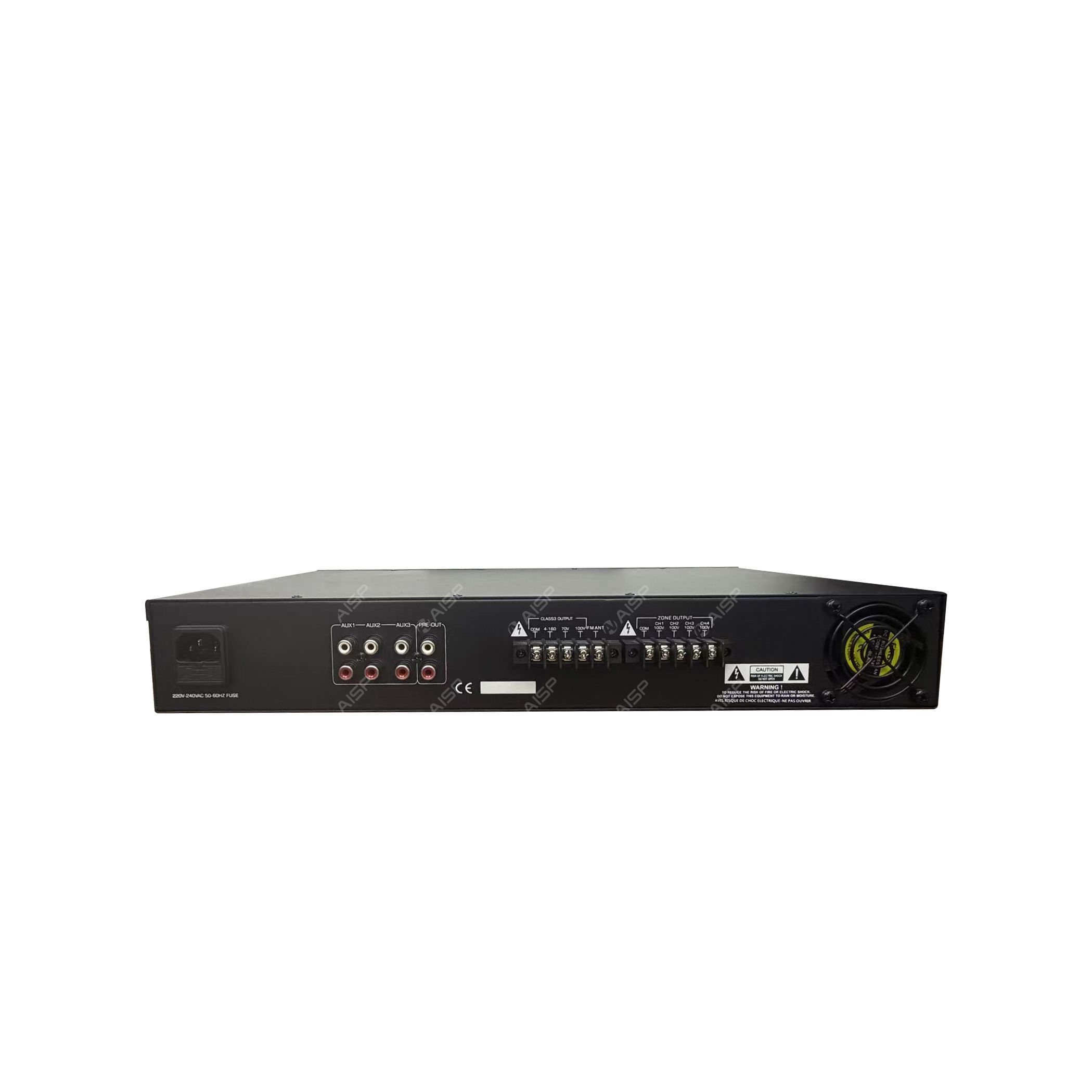

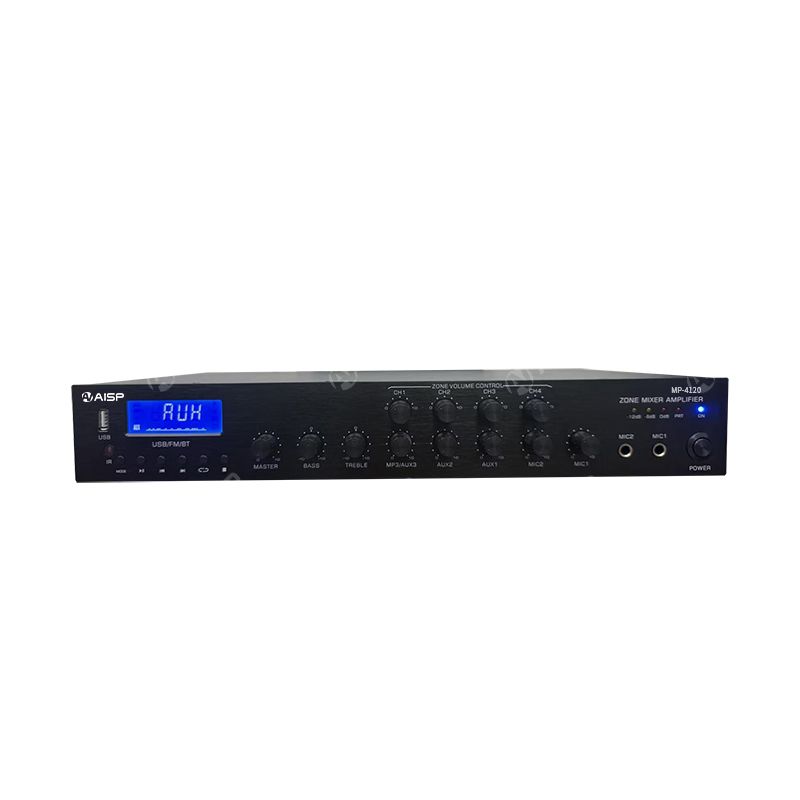

Multi Zone Amplifiers
Suitable for small to medium-sized spaces up to 240–720㎡ that require four-zone independent volume control, such as hotels, resorts,restaurants, cafes, entertainment lounges office buildings, conference centers, showrooms, shopping malls, retail stores, supermarkets, schools, kindergartens, training centers, waiting areas, community centers, libraries, office parks
l Rated Power：60W/120W/180W
l Speaker output: 70V/100V & 4-16Ωspeaker output
l Input source: 2 MIC, 3 AUX and USB/FM/Bluetooth（5.0 Version）
l Support power-off memory playback.
l 4 unit signal indicators, protection light indication.
l With treble and bass control and master volume control.
| Model | MP-460 | MP-4120 | MP-4180 | ||
| Rated Power | 60W | 120W | 180W | ||
| Power Supply | AC~110-220V 50/60Hz | ||||
| Output | 4-16 ohm 70V /100V | ||||
| Frequency Response | 80HZ-20KHZ | ||||
| S/N Ratio | 75 dB | ||||
| Distortion | <0.5% at 1KH2 100V -3dB | ||||
| Interface Output Model | 1-8mV | ||||
| AUX Input Sensitivity | AUX1-2 500mW/10KohmMIC1-3 1-6MV | ||||
| Treble Adjustment | 10kHz -+10dB | ||||
| Bass Adjustment | 100Hz -+10dB | ||||
| DIMENSIONS | 460MM*66MM*230mm(W*H*D) | ||||
| Weight | 7kg | 11kg | 13.5kg | ||
