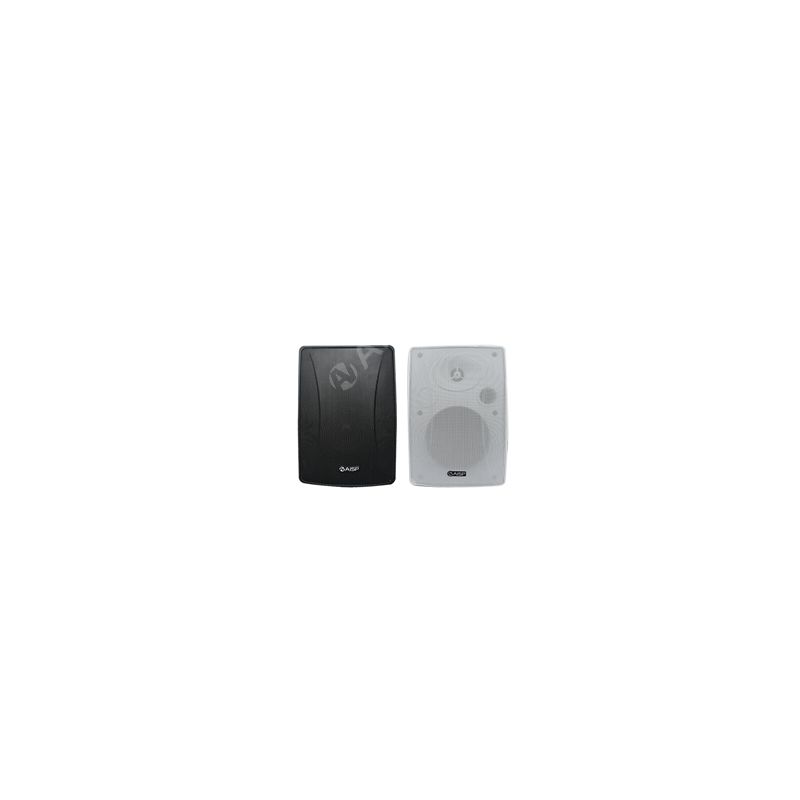

Wall Mount Speaker

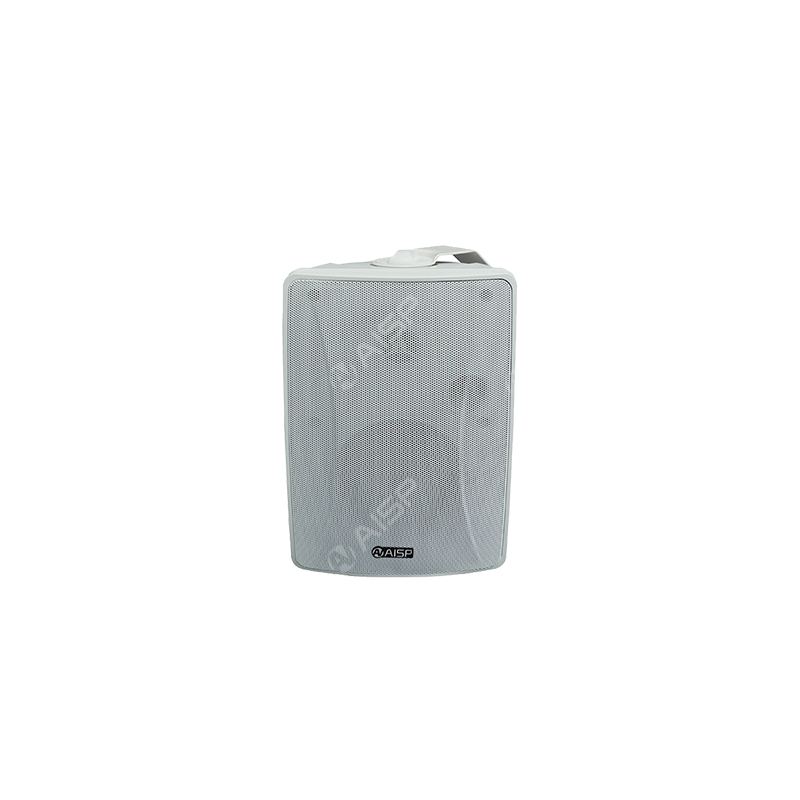

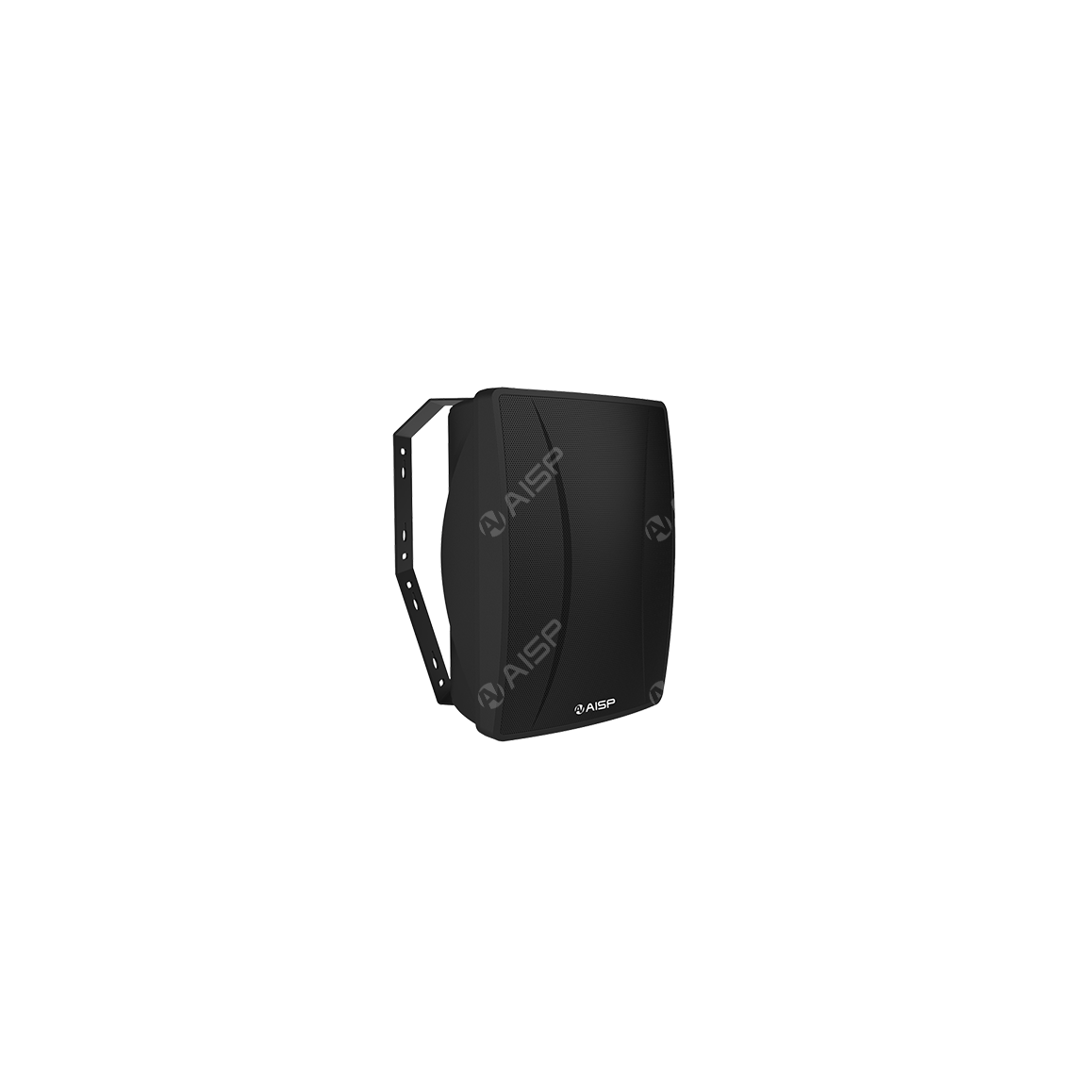

The WS6020 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
Metal grille and ABS enclosure of black color, long-term durability, never out of shape and fading; high sensitivity, clear and sonorous sound. Easy and secure wall mount installation by hanging holes.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed
Input 70V/100V/8Ω
Wide Freq.Resp.: 95Hz-20KHz
Max SPL: 103±2dB
High sensitivity: 90±2dB

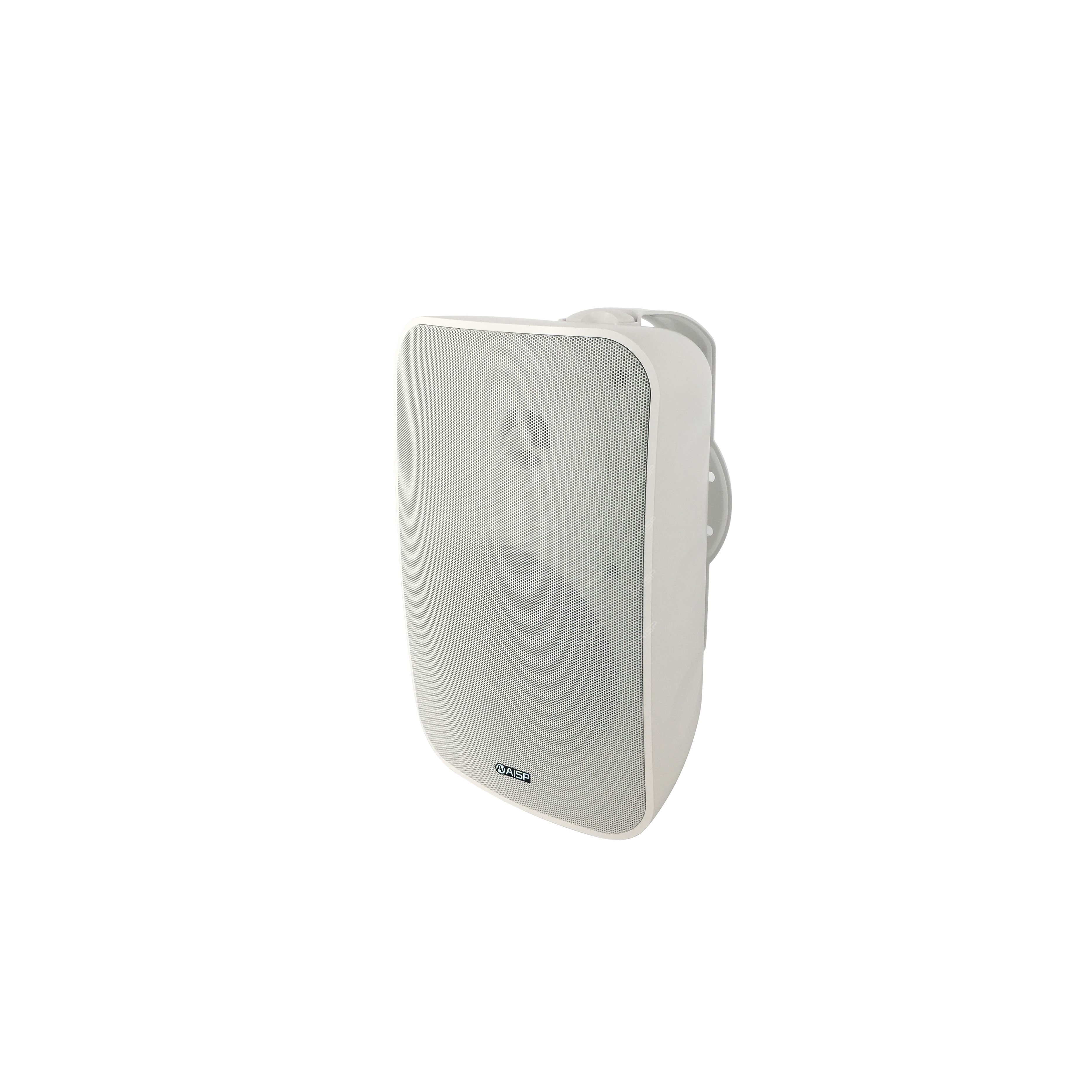

Wall mount type loudspeaker
Metal grille and ABS enclosure of black color
Equipped with hanging holes for mounting convenient
| Model | WS-6020 | WS-6030 | WS-6040 |
| Speaker Unit | 4" × 1, 1" × 1 | 5" × 1, 1" × 1 | 6.5" × 1, 1" × 1 |
| Sensitivity (1m, 1W) | 90 ± 2 dB | 90 ± 2 dB | 91 ± 2 dB |
| MAX. SPL (1m) | 103 ± 2 dB | 105 ± 2 dB | 107 ± 2 dB |
| Frequency Response | 95 Hz – 20 kHz | 80 Hz – 20 kHz | 65 Hz – 20 kHz |
| Rated Power | 20 W | 30 W | 40 W |

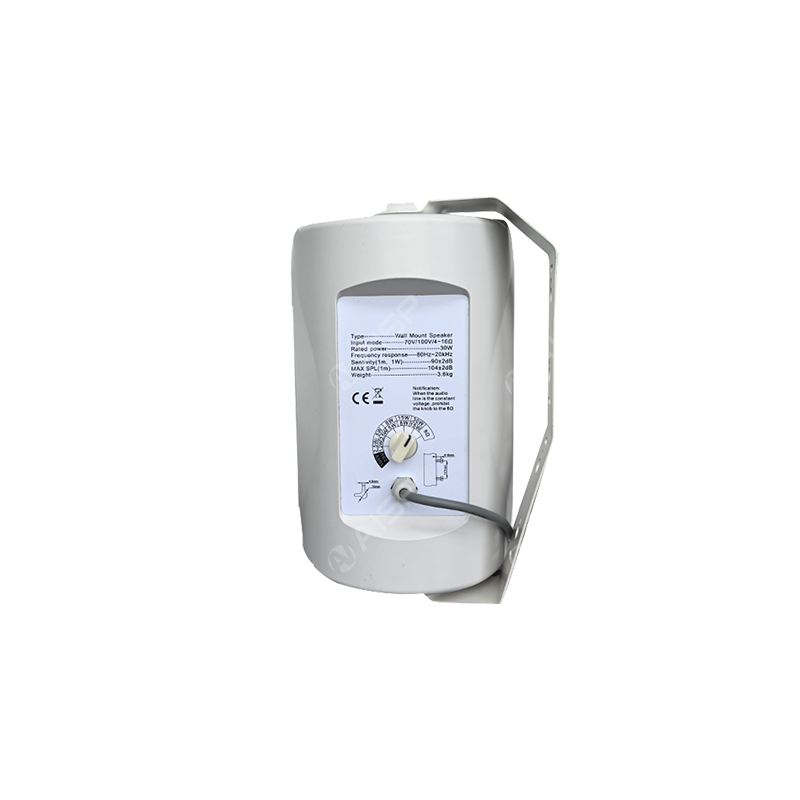

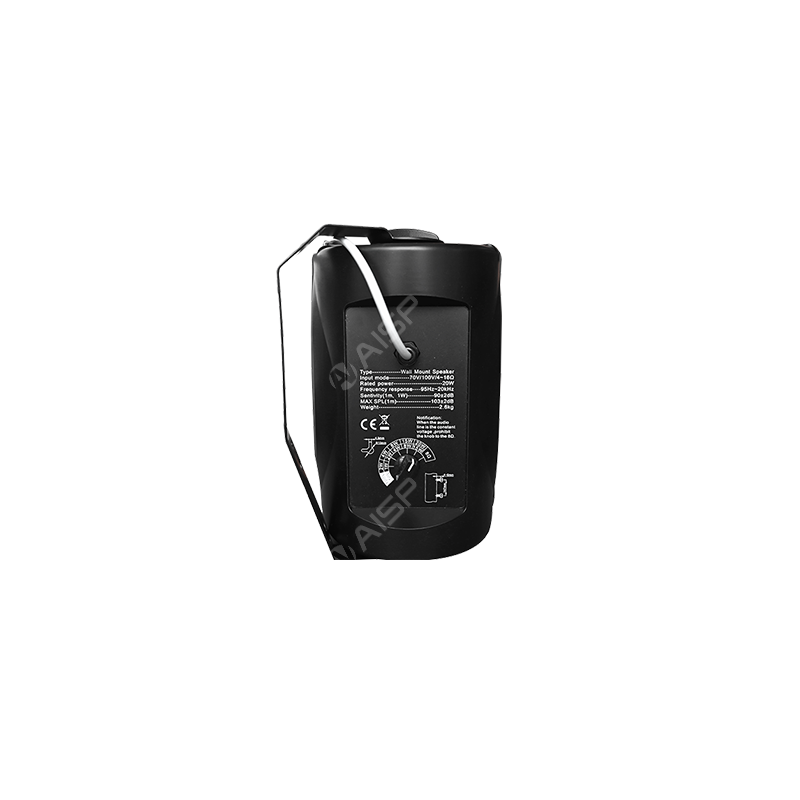

| Power Tap Options (70V) | 20W, 15W, 8W, 4W, 2W | 30W, 15W, 8W, 5W, 2.5W | 40W, 20W, 10W, 5W, 2.5W |
| Power Tap Options (100V) | 20W, 15W, 8W, 4W | 30W, 15W, 8W, 5W | 40W, 20W, 10W, 5W |
| Power Tap Option (8Ω) | 20 W | 30 W | 40 W |
| Constant Voltage Support | 70V / 100V (common) | ||
| Constant Resistance Support | 8Ω (common) | ||
| Dimensions (H × W × D) | 255 × 176 × 170 mm | 280 × 194 × 185 mm | 310 × 215 × 203 mm |
| Net Weight | 2.6 kg | 3.2 kg | 4.6 kg |
