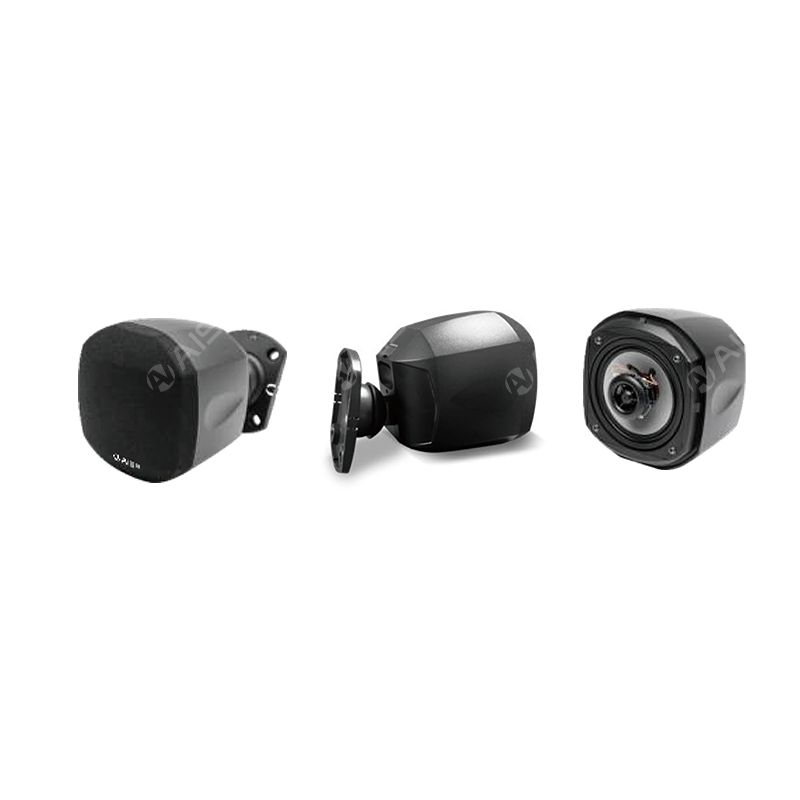

Wall Mount Speaker
Th WP-10 satellite low impedance loudspeaker offers a combination of design and great sound. With its 2.75''paper cone woofer, WP-10 is one of the smallest loudspeakers on the market and allows easy integration into every interior without compromising on sound quality. This speaker can be installed in a shop or bar where a loudspeaker is needed that creates an inviting atmosphere but also for residential projects where you need to install a sound system which does not take over the room.
Special brackets are supplied with the speakers allowing them to be mounted under various angles in corners or on solid surfaces such as walls or ceilings.
Commercial PA system wall-mounted speaker
Rated output power 10W at 100V
Power tap is optional according to user's need
1×2.75" for woofer driver
Quick installation with brackets
Small and neat appearance with extraordinary sound quality
Ideal for offices, hotels, bars and shopping mall public address system
The compact design makes the WP-10/WP-10T suitable for selected hotel areas, including reception spaces, corridors, lounges and other indoor locations where background music or announcements are required.
Wall-mounted installation can help provide audio coverage in offices, meeting rooms and shared spaces without occupying desk or floor space. Speaker placement should be planned according to room dimensions and the required listening level.
For hospitality venues that use background music to support the customer experience, compact wall speakers offer a practical installation option. The number and position of speakers should be selected according to the room layout, ambient noise and desired coverage.
Retail shops, showrooms and smaller commercial spaces may use wall-mounted speakers for music and public announcements. Confirm the required sound output and amplifier compatibility before selecting the speaker configuration.
| Speaker Unit | RMS Power | Taps |
| 2.75"x1 | 10W | 10W , 5W ,2.5W ,1.25W |
| Impedance | Terminal Blocks | Dimensions |
| 8Ω | Termination Pluggable | 90mmx96mmx136mm |
| Sensitivity | Material | Frequency Rang±3 |
| 84 dB | ABS | 228 Hz-20k Hz |
The product is listed as a 10W wall-mounted speaker. The applicable power taps and electrical configuration should be confirmed for the selected model.
The published 100V configuration lists 10W, 5W, 2.5W and 1.25W power taps. Confirm the available settings for the exact model before ordering.
The WP-10/WP-10T uses one 2.75-inch paper cone woofer according to the published product specifications.
It is intended for suitable indoor commercial applications, including offices, hotels, bars and retail stores. Installation should follow the mounting instructions and the requirements of the selected audio system.
The product listing describes a 100V configuration with selectable power taps. Confirm the precise model and connection specification before connecting it to a 100V amplifier.
Contact AISP with your required quantity, destination market and system requirements to confirm availability, pricing and applicable ordering terms.
Looking for compact 10W wall-mounted speakers for a hotel, office, bar, retail store or commercial public address installation?
Provide your required quantity, preferred model, electrical configuration and application details. AISP can help confirm the relevant specifications and provide a quotation for your project.
Explore the wall-mounted speaker product range or contact AISP to request product information and wholesale pricing.
