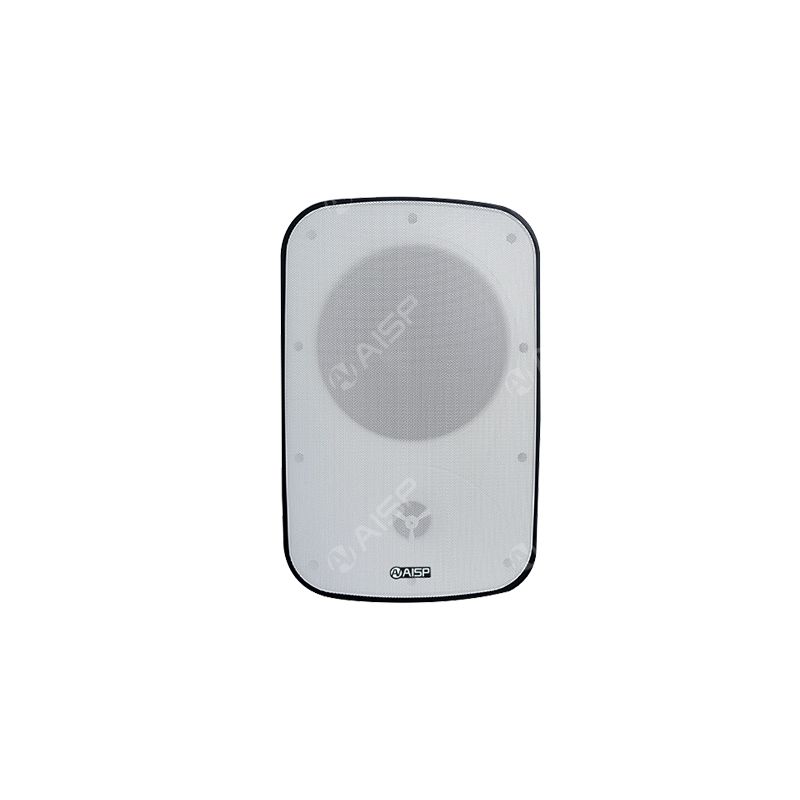

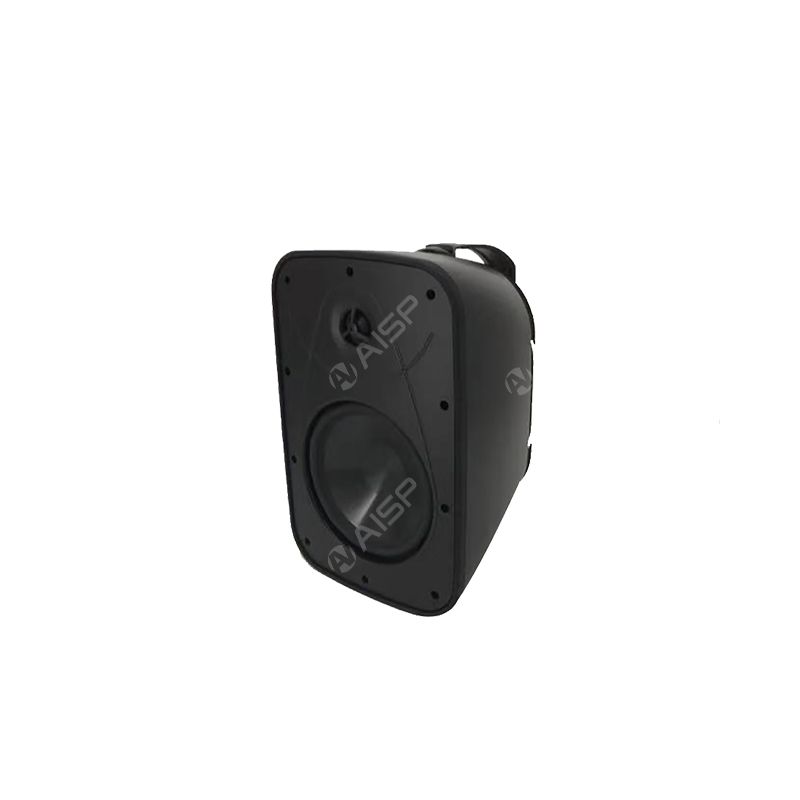

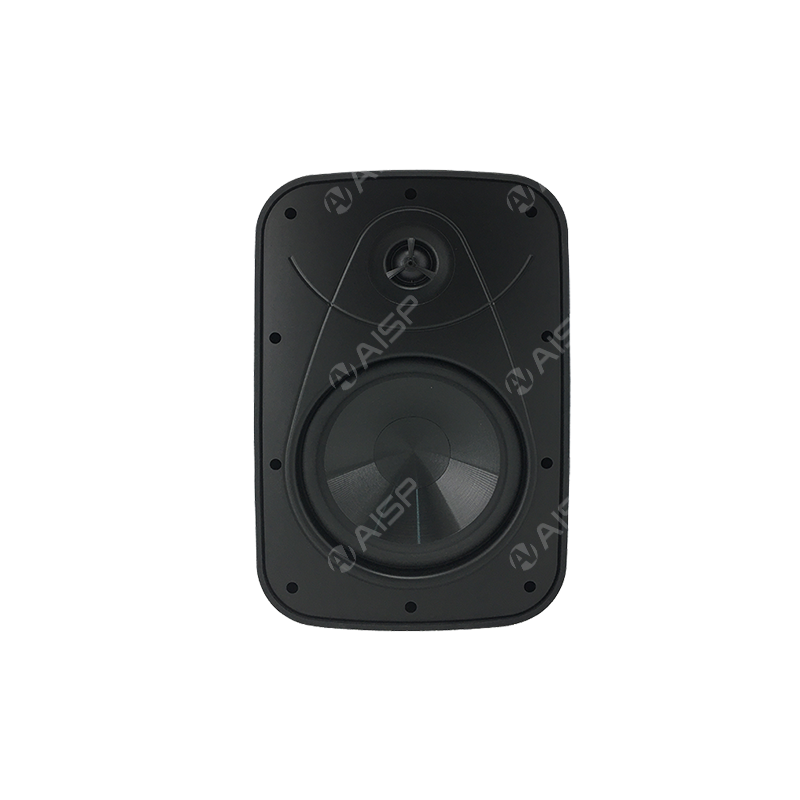

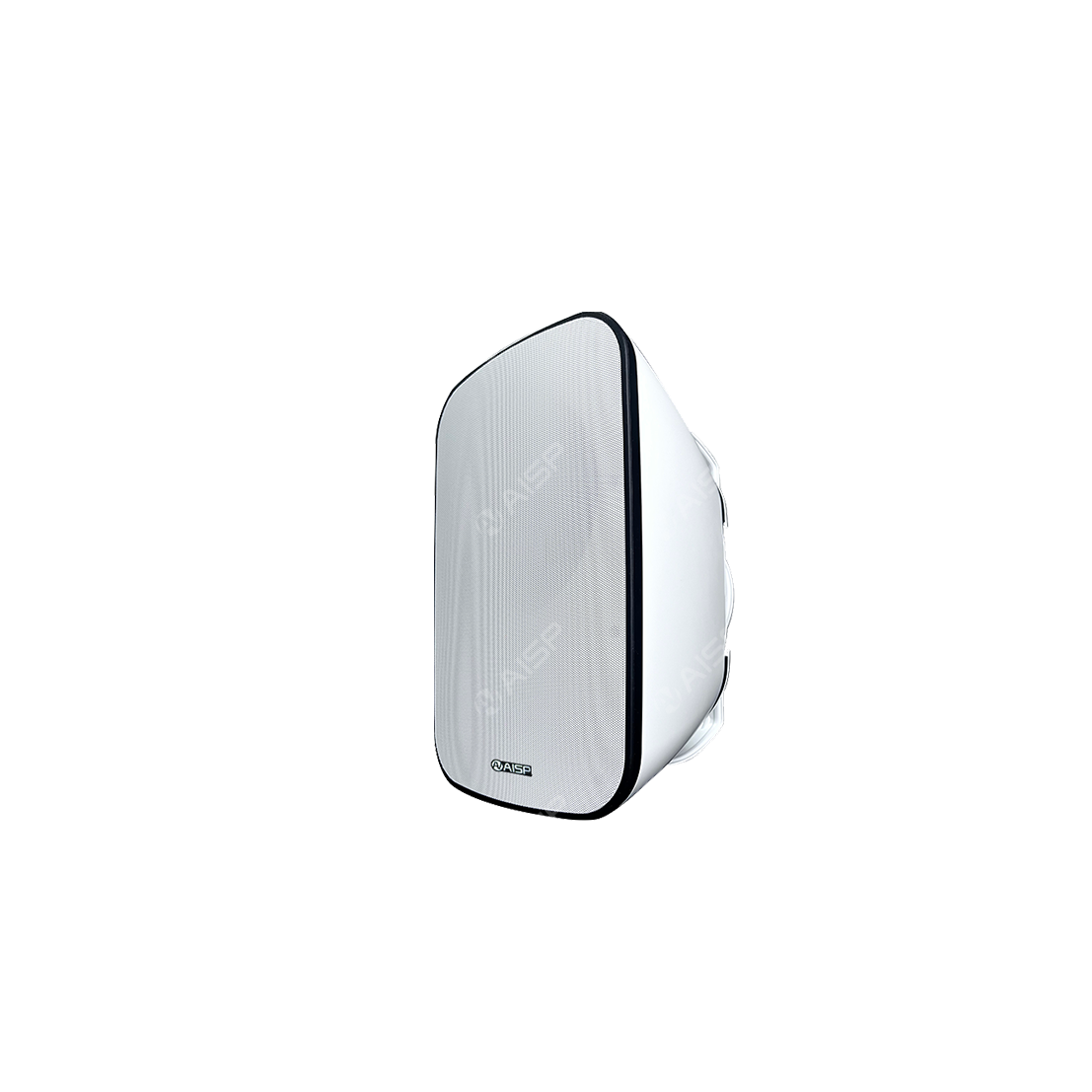

WP-S02 40W Waterproof Wall Mount Speaker

The S01/02/03 series Waterproof Wall Mount Speaker is developed to redefine a new design trend for wall mount speakers market where Beauty, Durability, Performance and User Friendliness come as ONE CORE CONCEPT.

This speaker can deliver impeccable audio as well as clean and clear announcements for public address systems. The Unique Rear Covers not only helped to cover the Euro-block Connector and Bypass Selector (PA Transformer) in the rear of the speaker, it is also designed to merge seamlessly with the OBE Bass Radiator and the overall design of Speakers giving it an extra touch of modern sophistication.

Inquire Now Download

Feature
Specification

High-end PA system IP66 wall-mounted speaker
Rated output power 20W/40W/50W
With power tap for 70V/100V and 8Ω
1×5", 1×6.5" or 1×8" for woofer and 1×1" for tweeter
Exclusive optimal bass enhancement technology
Quick installation with water-proof brackets
Fashionable appearance with extraordinary sound quality

Model	WP-S01	WP-S02	WP-S03
Tweeter	1"(25 mm) Silk soft dome	1"(25mm) Silk soft dome	1.1"(28mm) Silk soft dome/Aluminum dome
Woofer	5"(125mm) Graphite Cone, Rubber Surround	6.5"(165mm) Graphite Cone, Rubber Surround	8"(203mm) Graphite Cone, Rubber Surround
Frequency Range	100Hz-20kHz(+/-3dB)	90Hz-20kHz(+/-3dB)	80Hz-20kHz(+/-3dB)
Power RMS	40W program, 20W	80W program, 40W	80W program, 50W
Sensitivity	85dB	86dB	87dB
Taps	8Ω, 0, 20W, 10W, 5W, 2.5W	8Ω, 0, 40W, 20W, 10W, 5W	8Ω, 0, 50W, 25W, 12.5W, 6.25W
Impedance	8 Ω	8 Ω	8 Ω
Termination	Plugged Terminal Blocks	Plugged Terminal Blocks	Plugged Terminal Blocks
Attachment	Brackets, Grille	Brackets, Grille	Brackets, Grille
Dimensions HWD	258mm x 170mm x 168mm	285mm x 198mm x 195mm	381mm x 250mm x 250mm
Certifications	IP66	IP66	IP66
Material	ABS	ABS	ABS
