IP Network PA System
This NT-210 is a Network Public Address Center, which is a computer network technology based, modular structured and highly integrated and intelligent public address system. The network public address device is compatible with terminals with various functions, including player terminals, VOD terminals, paging terminals and one-button emergency calling terminals etc. The device is composed of a player, a zoning mechanism, a timer and an equalizer, in addition it also provides powerful audio matrix function. The network public address system is applicable to airports, wharves, college towns, schools, large gatherings (such as the Expo Park), gymnasium, industrial parks, parks, rail transit and express ways.

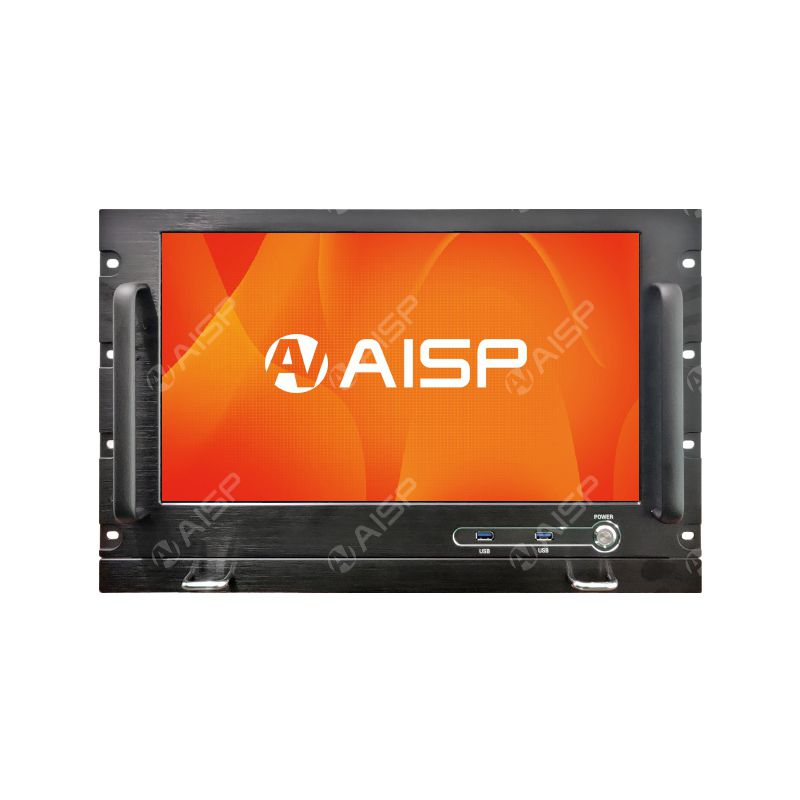

17.3 inch screen, power supply: 270W/300W
2 MIC inputs, 2 line inputs, 1 line output, independent volume adjustment
Hard disk: Domestic 128GB solid state drive
Memory: Domestic 4G memory, up to 32GB
Supports digital transmission; all is transmitted mainly by network(LAN)
Industrial circuit board for stable running
Powerful matrix; rich built-in electro-acoustic program sources
Built-in four independent audio input channels, CD player and special audio source
Standard 19'' design for rack mounting
Log view function; view operation status
Control the volume of timed contents individually
Broadcast resumes automatically after connection recovery
A full alarming button is offered
Airports, railway stations and transportation hubs often require centralized announcements across terminals, platforms, waiting areas and service zones.
The AISP NT-210 can be considered as the central host in a compatible IP network PA system, supporting scheduled broadcasting and centralized audio management. System design should account for network topology, zone requirements, priority announcements and emergency interfaces.
Schools and campuses may require announcements across classrooms, corridors, administrative buildings, sports facilities and outdoor areas.
A network-based PA architecture allows compatible devices to be organized across multiple locations. The required paging terminals, network amplifiers and speakers should be selected according to the campus layout and broadcasting requirements.
Factories and industrial parks may use network PA systems for routine announcements, scheduled messages and operational communications across production buildings and shared facilities.
When specifying the NT-210 IP Network PA System Host, confirm the required coverage areas, connected terminal types, network infrastructure and any interfaces needed for existing communication systems.
Shopping centers, office complexes, hotels and other large buildings may require centralized audio management across separate floors and functional areas.
The IP Network PA System Host can support a compatible network PA architecture in which audio terminals and amplifiers are connected through the designated network infrastructure. Final system capacity and functionality depend on the connected devices and configuration.
An IP network PA system host is a centralized device used to manage compatible network public address equipment. Depending on its functions, it can support audio playback, scheduled broadcasting, zone management and communication with connected network terminals.
The NT-210 IP Network PA System Host is designed for centralized control in compatible IP network PA systems used in airports, schools, campuses, industrial parks, transportation facilities and large commercial buildings.
The published specification lists two microphone inputs, two line inputs and one line output, with independent volume adjustment. Confirm the precise interfaces and channel functions against the current product datasheet.
Yes. The listed features include scheduled audio content and individual volume adjustment for timed programs. Available scheduling and playback functions should be confirmed for the required system configuration.
TheIP Network PA System Host is designed to support compatible emergency calling and public address terminals, and the listed features include a full-alarm button. Confirm the required interfaces, priority logic and applicable certification before using it in an emergency voice evacuation system.
The listed configuration includes a 128GB solid-state drive and 4GB of memory, expandable up to 32GB. Confirm the current hardware configuration before ordering.
Provide the project location, coverage areas, required broadcasting zones, connected device types, audio input requirements, emergency integration requirements and estimated quantity. A system diagram or equipment list can help clarify the required configuration.
Planning a network public address system for an airport, school, industrial park, transportation facility or commercial building?
Share your project layout, required broadcast zones, connected equipment and functional requirements with AISP. The team can help review the NT-210 specifications and identify the compatible network PA components required for your installation.
Explore the IP Network PA System range or contact AISP to request product specifications and a project quotation.
