45W High Fidelity Horn Speaker

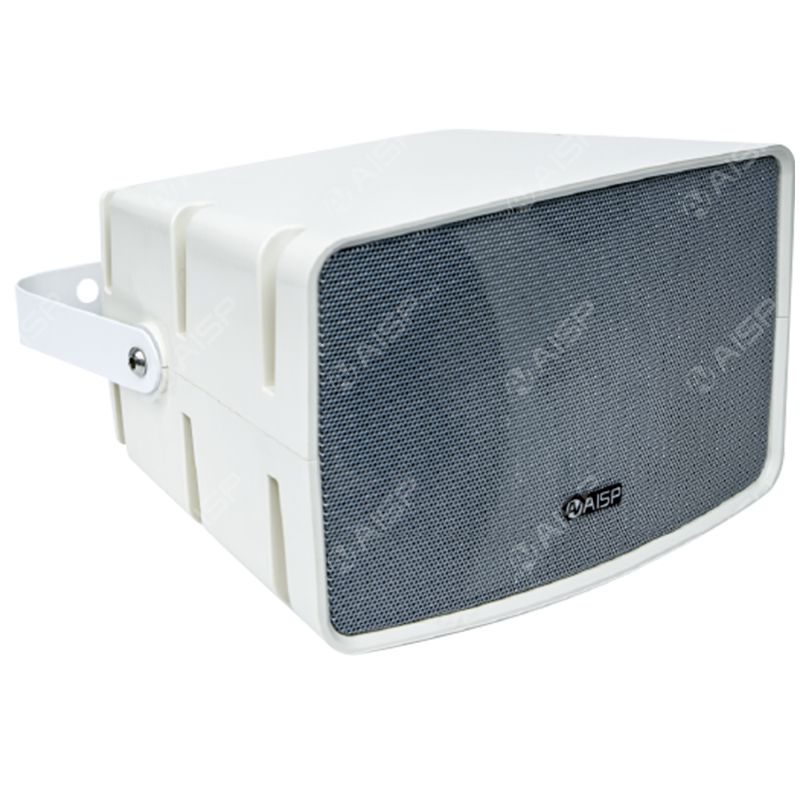

AH-650 45W High Fidelity Horn Speaker

This 45W High Fidelity Horn Speaker is a two-way speaker, which consists of 3” horn + 5” full-range unit. It provides high-efficiency sound reinforcement of the horn speaker and ensures clear and undistributed sound quality over long distances. It is designed with waterproof and aluminum mesh, and the shell is made of weather-resistant engineering plastic ASA for long-term use.

Share:
Inquire Now

The two-way speaker unit 3''*1+5''*1structure

Waterproof design, aluminum mesh

With the shell made of weather-resistant engineering plastic ASA


Applications of 45W High Fidelity Horn Speakers


The AH-650 is suitable for commercial public address installations where clear announcements and directional sound projection are required.

  • Factories and Industrial Facilities: Support production-area announcements, operational notifications and general public address applications.

  • Schools and Educational Facilities: Suitable for campus announcements, outdoor paging and communication across designated public areas.

  • Commercial Buildings: Provide audio coverage for building entrances, outdoor walkways and shared public spaces.

  • Sports and Recreational Facilities: Support announcements and audio playback in outdoor activity areas.

  • Parks and Public Spaces: Suitable for public information broadcasting and general audio applications in outdoor environments.

  • Transportation Facilities: Can be considered for compatible public address installations in designated outdoor or semi-outdoor areas.

The required installation position and coverage should be evaluated according to the site layout, ambient noise, mounting height and acoustic environment.



Speaker UnitModelFrequency Response
3''*1+5''*1AH-65080 Hz-20, 000 Hz
Sensitivity (1m, 1W)MAX. SPL.Input Voltage
93±2 dB109±2 dB100V
Rated PowerProduct WeightColor
45W3.5 kgWhite / Gray

Why Choose AISP AH-650 High Fidelity Horn Speaker?

AISP supplies professional PA speakers and audio equipment for commercial, institutional and industrial audio projects.

  • Two-Way Speaker Configuration: Combines a 3-inch horn and a 5-inch full-range unit.

  • 45W Rated Power: Suitable for compatible 100V public address systems.

  • High Sound Sensitivity: Rated at 93±2dB (1m, 1W).

  • Wide Frequency Response: Specified range of 80Hz–20kHz.

  • Weather-Resistant Housing: Uses ASA engineering plastic with an aluminum mesh grille.

  • Multiple PA Speaker Options: AISP also supplies waterproof horn speakers, horn speakers with power taps, ceiling speakers, wall mount speakers and column speakers.

Frequently Asked Questions About AH-650 Horn Speaker

1. What is the rated power of the AH-650 horn speaker?

The AH-650 has a rated power of 45W and supports 100V constant-voltage input for compatible public address systems.

2. What is the speaker structure of the AH-650?

The AH-650 uses a two-way speaker structure consisting of one 3-inch horn unit and one 5-inch full-range unit.

3. What is the frequency response of the AH-650?

The specified frequency response is 80Hz–20kHz, supporting speech and general audio reproduction.

4. What is the sensitivity of the AH-650?

The AH-650 has a sensitivity of 93±2dB, measured at 1 meter with 1W input.

5. What is the maximum SPL of the AH-650?

The listed maximum sound pressure level is 109±2dB.

6. Is the AH-650 suitable for 100V PA systems?

Yes. The AH-650 supports 100V input and can be integrated into compatible 100V distributed public address systems.

7. What materials are used in the AH-650 horn speaker?

The enclosure is made of weather-resistant ASA engineering plastic, and the speaker features an aluminum mesh grille.

8. Is the AH-650 suitable for outdoor installation?

The product is described as having a waterproof design and weather-resistant ASA housing. Its suitability for a specific outdoor environment should be evaluated against the required waterproof rating, installation conditions and environmental exposure.

9. What is the difference between a high fidelity horn speaker and a conventional PA horn speaker?

A conventional PA horn speaker generally prioritizes directional sound projection and speech announcements. A high fidelity horn speaker such as the AH-650 uses a two-way driver configuration to support both directional projection and broader audio reproduction.

Request a Quote for AH-650 45W High Fidelity Horn Speaker

Looking for a 45W high fidelity horn speaker for your commercial or outdoor public address project?

AISP supplies the AH-650 with a two-way 3-inch horn and 5-inch full-range configuration, 100V input, 93±2dB sensitivity and weather-resistant ASA housing.

Contact AISP with your required quantity, installation environment, amplifier configuration and project requirements to receive product information and a quotation.
