Class-D Amplifier
This is a Class D digital amplifier designed for commercial and industrial public address applications. Rack mount design in 1U type and rated power is 1*120W

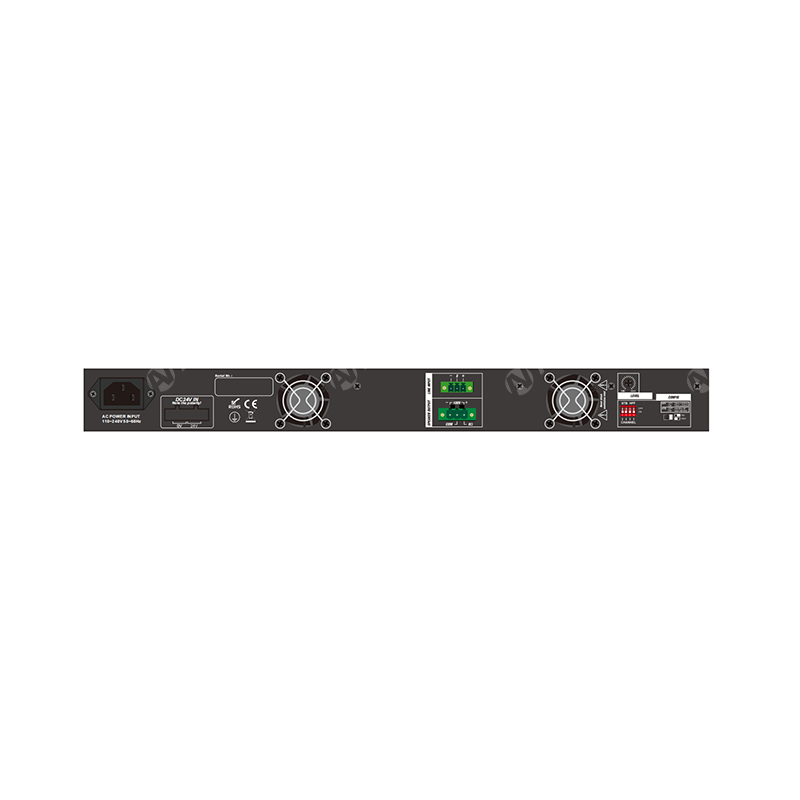

Both balanced and unbalanced line inputs are available for each channel. Balanced line output feeds to another power amplifier as well as secures the signal transmission is less noise and longer distance. 70V, 100V speaker outputs are convenient for installation when selection different speaker matching. Complete protection includes clip, short circuit, high temp and overload. With indications for power, signal, clip, protection and temperature. This product can be called two channel amplifier.
l Switching power Class-D PA amplifier
l Low power consumption & low heat

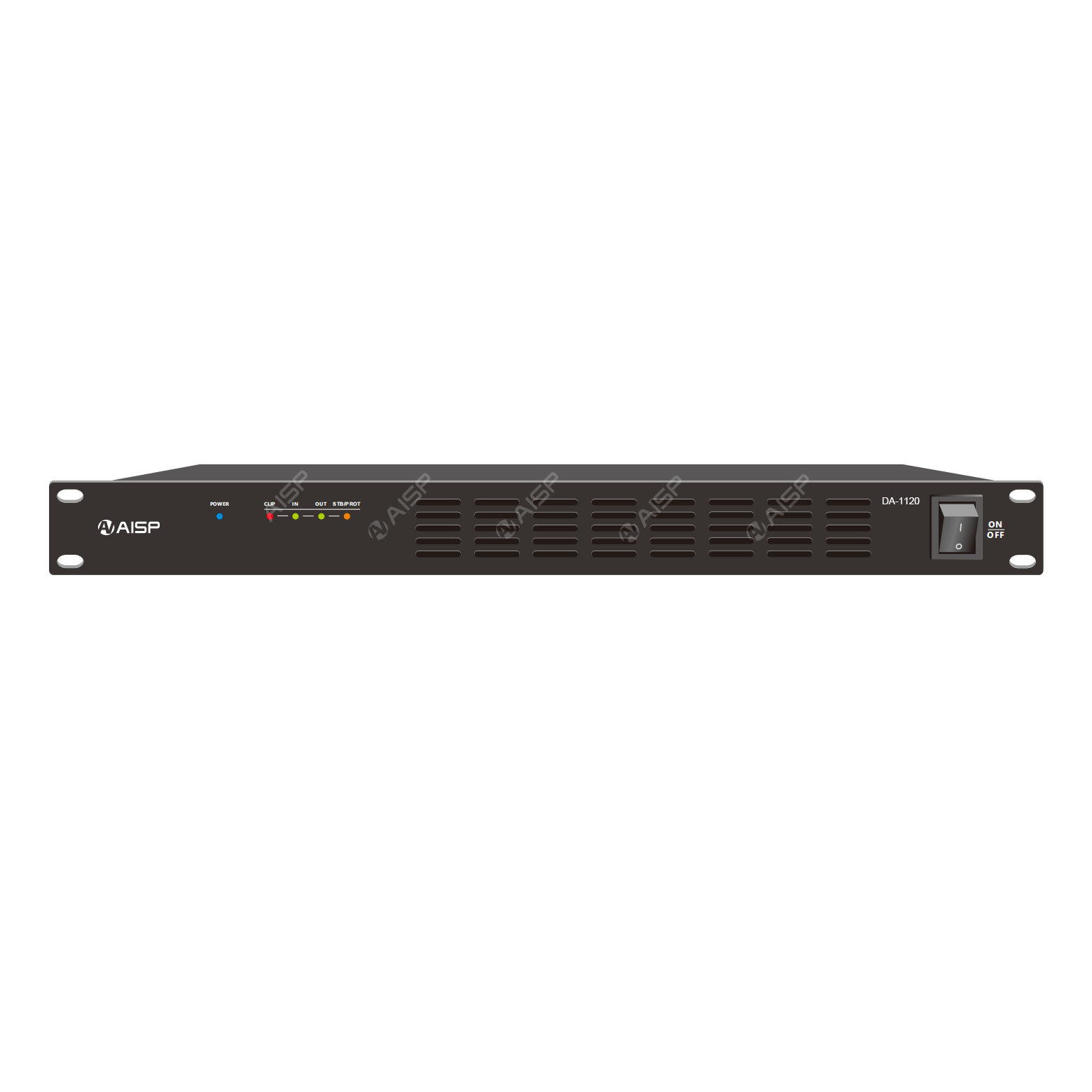

l Compact 1U 19" rack design
l 120W/240W/350W/500 rated output
l Supports 4–16Ω / 100V speakers
l Balanced Phoenix/XLR input
l Independent gain control per input
l Built-in high-cut filter
l Auto standby for power saving
l Protection, clip, I/O indicators
l Full protection: short circuit, overload, over temp, DC, clip
l Wide voltage: 115V/230V AC
l Optional 24V DC input
| Model | DA-1120 | DA-1240 | DA-1350 | DA-1500 |
| Description | Class-D Single Channel Power Amplifier | |||
| Rated Power Output | 120W | 240W | 350W | 500W |
| Speaker Output | 4-16Ω & 100V | |||
| Frequency Response | L/H Cut OFF: 20Hz-20KHz (±2dB)L/H Cut ON: 70Hz-10KHz (±3dB) | |||
| Input | 0.775V, 0dBu, balanced phoenix connector | |||
| Input Impedance | 10KΩ | |||
| THD | <0.1% (1kHz/-3dBv, 100W) | |||
| S/N Ratio | >80dB ( | |||
| Crosstalk | >60dB, 1kHz, Max output | |||
| Power Consumption | 200W | 300W | 420W | 550W |
| Power Supply | AC input switchable between 115V & 230V, 50-60Hz;24V DC input as option | |||
| Dimension | 482(W)×420(D)×44(H) mm | |||
| Weight | 4.2kg | 4.5kg | 5kg | 5.5kg |
