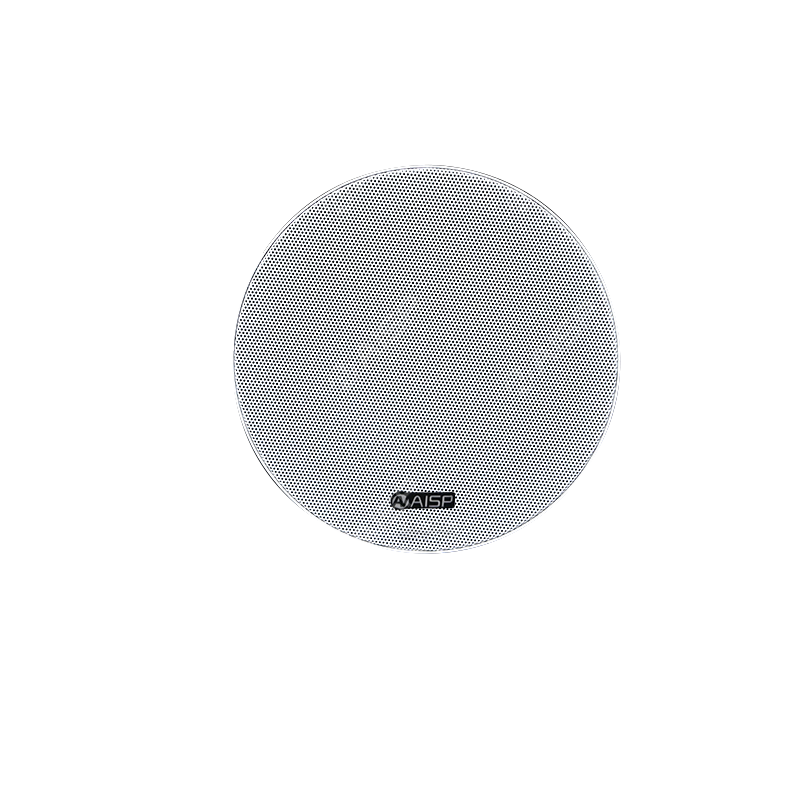

Ceiling Speaker
70/100V operation, power selectable 3W–6W via multi-tap terminals for versatile installation
Max SPL 100±2dB, frequency response 130Hz–18kHz
Sensitivity 93±2dB, clear and bright sound with damped speaker surround for long lifespan
Lightweight 1.0kg fire-retardant plastic housing, durable, colorfast and deformation-resistant
Quick-install sturdy spring clip for easy mounting
| Model | ATS-603 |
| Speaker Unit | 6.5"×1 |
| Rated Power (RMS) | 6W |
| Maximum Power | 10W |
| Rated Voltage (70V) | 3W/6W |
| Rated Voltage (100V) | 6W |
| Sensitivity (1m, 1W) | 90dB |
| Frequency Response | 110Hz-15kHz |
| Storage Temperature | -25°C ~ +55°C |
| Dimensions | Φ191×105mm |
| Weight | 0.9kg |
