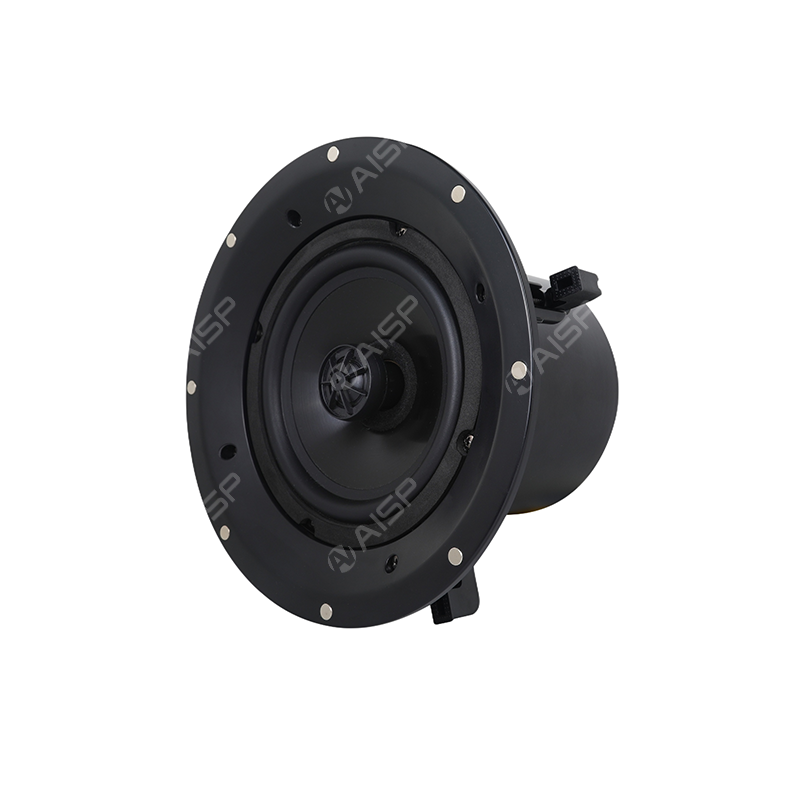

Ceiling Speaker
6.5" woofer + 0.75" tweeter for balanced full-range sound

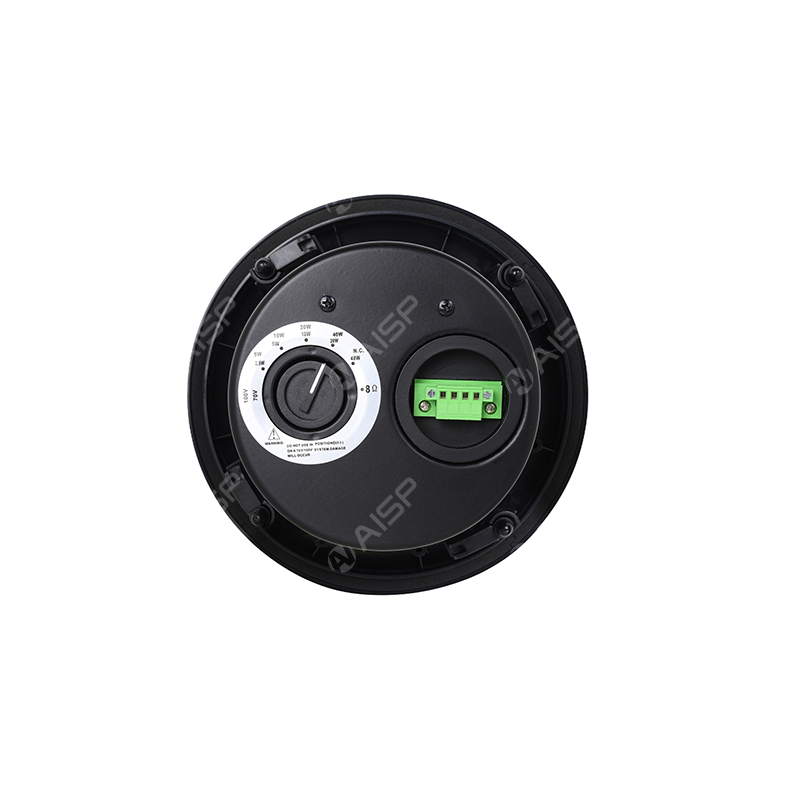

Multi-tap 70V/100V(2.5W-40W) + 8Ω direct drive, 40W RMS / 80W Peak
89dB±3dB high sensitivity for efficient sound output
80Hz-18KHz wide frequency response for clear speech & smooth music
Standard ceiling-mount design (Φ218mm cutout) for easy installation
Compatible with all commercial PA systems and residential audio setups
| Model | CS-840 |
| Unit Speaker | 6.5"×1 / 0.75"×1 |
| Rated Power (100V) | 5W/10W/20W/40W |
| Rated Power (70V) | 2.5W/5W/10W/20W / 40W |
| Rated Power (8Ω) | 40W |
| Max Power | 80W |
| Input | 70V/100V/8Ω |
| Sensitivity | 89dB±3dB |
| Frequency | 80Hz-18KHz |
| Weight | Φ242×160mm |
| Opening Hole | Φ218 mm |
| Product Size | 2.0KG |
